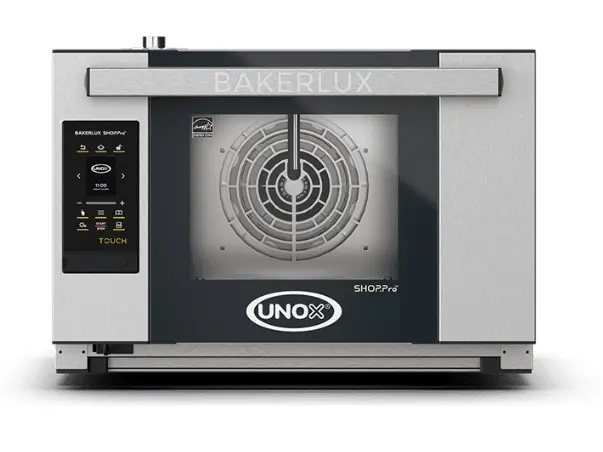

UNOX TOUCH 3 CONVECTION OVEN STEFANIA (XEFR-03HS-ETDV)
Description
Convection oven, ideal for baking breakfast and snack products, especially pastry and frozen bakery items. Equipped with humidity control, 2 programmable fan speeds, and a 304 stainless steel cooking chamber.
The 2.4” digital touch control panel allows storage of up to 99 cooking programs, each with an image and name, making operations easier at every point of sale. The oven is Internet-ready and compatible with the datadrivencooking.com platform.
Standard Cooking Features
Programs
99 cooking programs
Manual cooking mode
Temperature range: 30°C – 260°C
Up to 9 cooking steps
Humidity adjustment in 20% increments
App and Web Services
Data Driven Cooking app & web app: monitor oven operating conditions in real time, create and share new recipes.
Artificial intelligence analyzes consumption data and converts it into valuable insights to help increase daily profitability.
Top Training app: download the Unox Top.Training app to learn step by step all the features of your oven’s control panel.
Advanced & Automatic Cooking Features
Unox Intensive Cooking
DRY.Plus: rapidly extracts humidity from the cooking chamber.
STEAM.Plus: instantly creates humidity.
AIR.Plus: multiple fans with reverse rotation and 2 speed settings.
Key Features
High-resistance AISI 304 stainless steel cooking chamber with rounded edges.
Double-glass door.
LED lighting integrated into the door for optimal chamber visibility.
Baking chamber with chrome-plated steel rack rails and anti-tip system.
2-speed fan system with high-performance circular heating elements.
Built-in Wi-Fi Internet connection.
Wi-Fi / USB data transfer:
Download/upload HACCP data
Download/upload cooking programs
Dimensions and Weight
| Specification | Value |
| Width | 600 mm |
| Depth | 669 mm |
| Height | 425 mm |
| Net Weight | 36 kg |
| Tray Pitch | 75 mm |
Connection Positions
| No. | Description |
| 2 | Terminal board – power supply |
| 3 | Unipotential terminal |
| 6 | Technical data plate |
| 7 | Safety thermostat |
| 8 | 3/4" female NPT water inlet |
| 12 | Hot fumes exhaust chimney |
| 13 | Accessories connection |
| 27 | Cooling air outlet |
Electrical Power Supply – STANDARD
| Specification | Value |
| Voltage | 220–240 V |
| Phase | ~1PH + PE |
| Frequency | 50 / 60 Hz |
| Total Power | 3 kW |
| Max Amp Draw | 13 A |
| Required Breaker Size | 16 A |
| Power Cable Requirements* | 3G × 1.5 mm² |
| Plug | Schuko |
