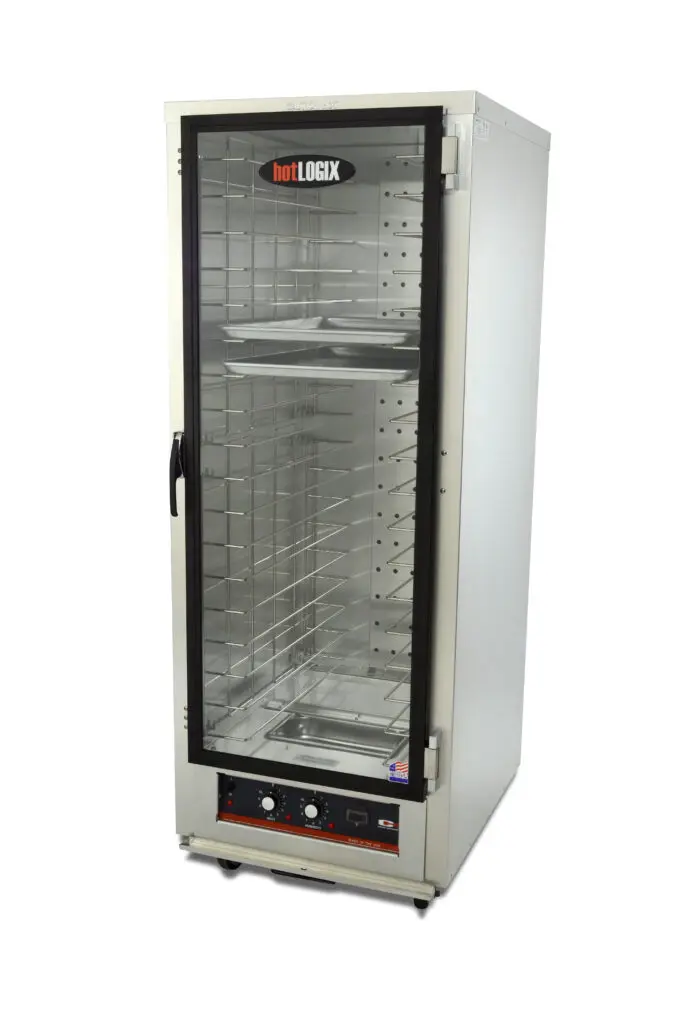

Carter‐Hoffmann Humidified Holding Cabinet MODEL HL4-18
Description

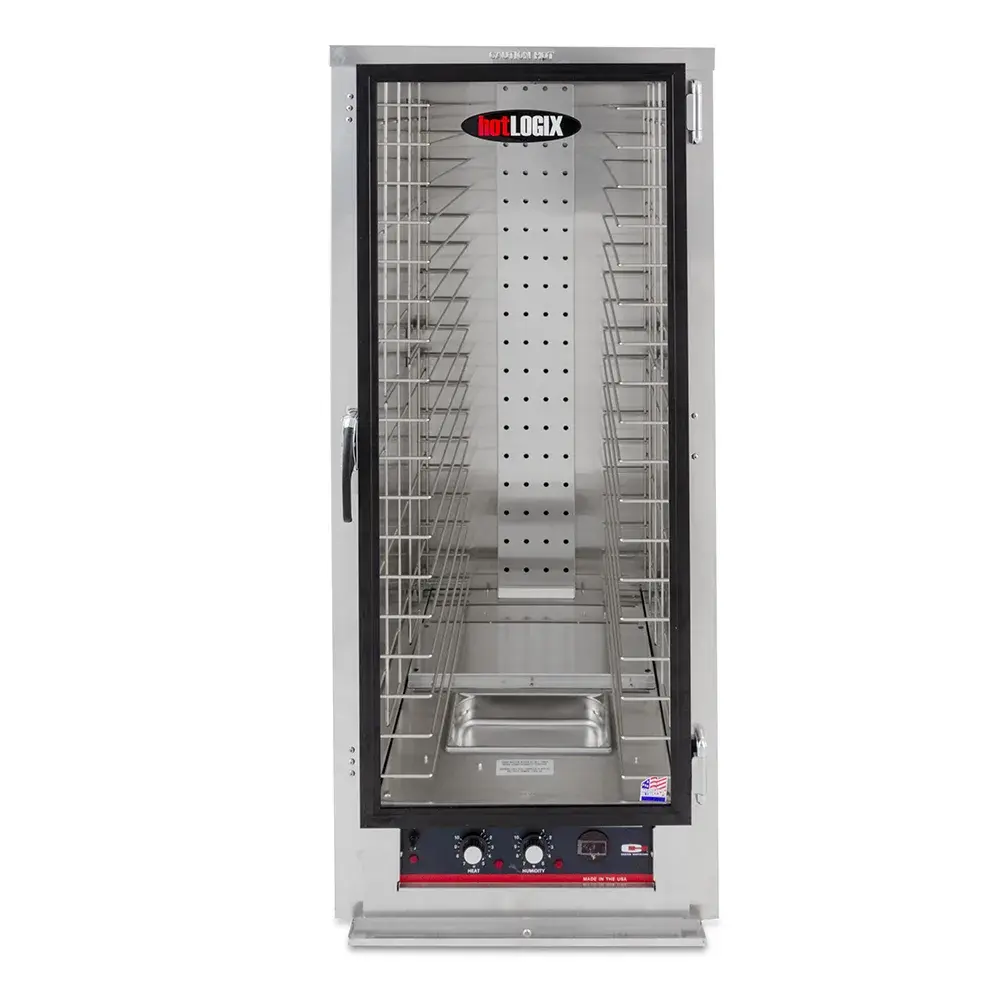

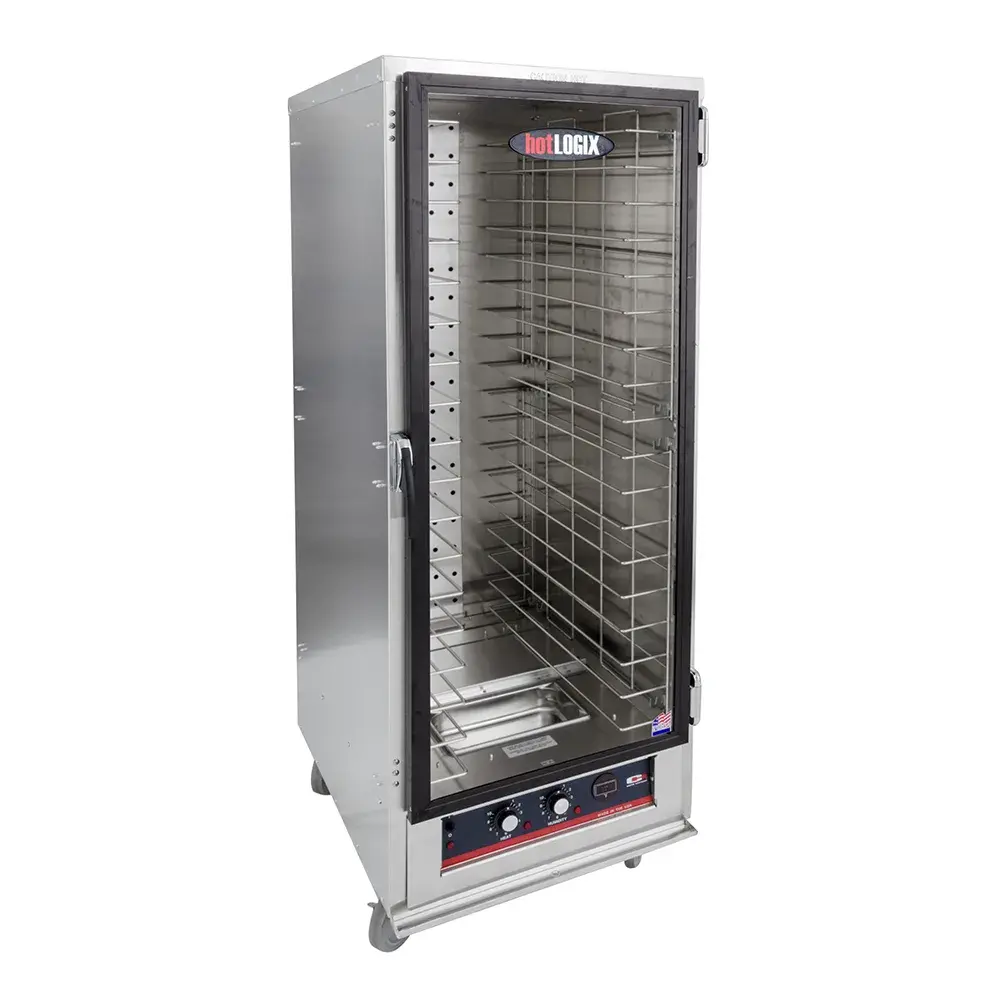

The Carter-Hoffmann HL4-18 Humidified Holding Cabinet from the hotLOGIX series provides precise control over both heat and humidity to maintain the quality of baked goods, prepared meals, and other foods. Featuring an aluminum double-wall construction with 1-inch wrap-around insulation, this full-height cabinet evenly circulates heated, humidified air with a blower fan to keep food hot and prevent drying.

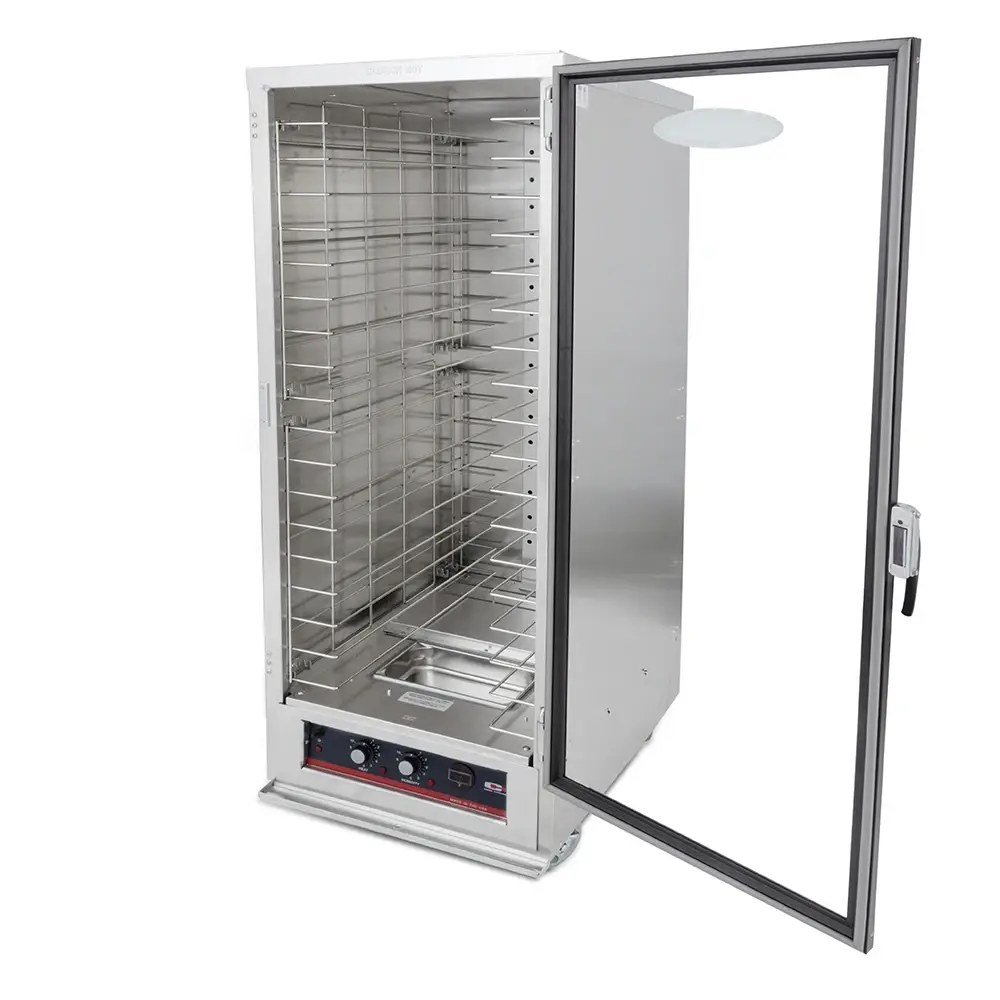

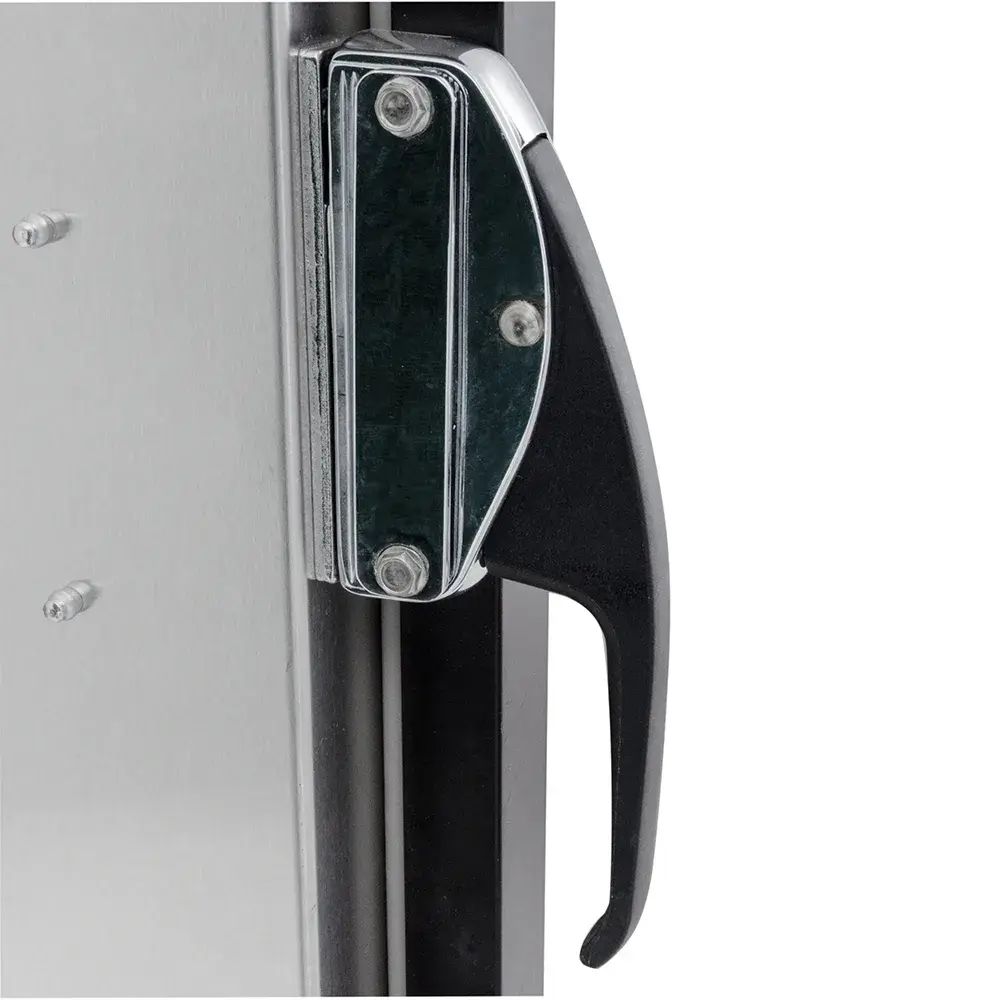

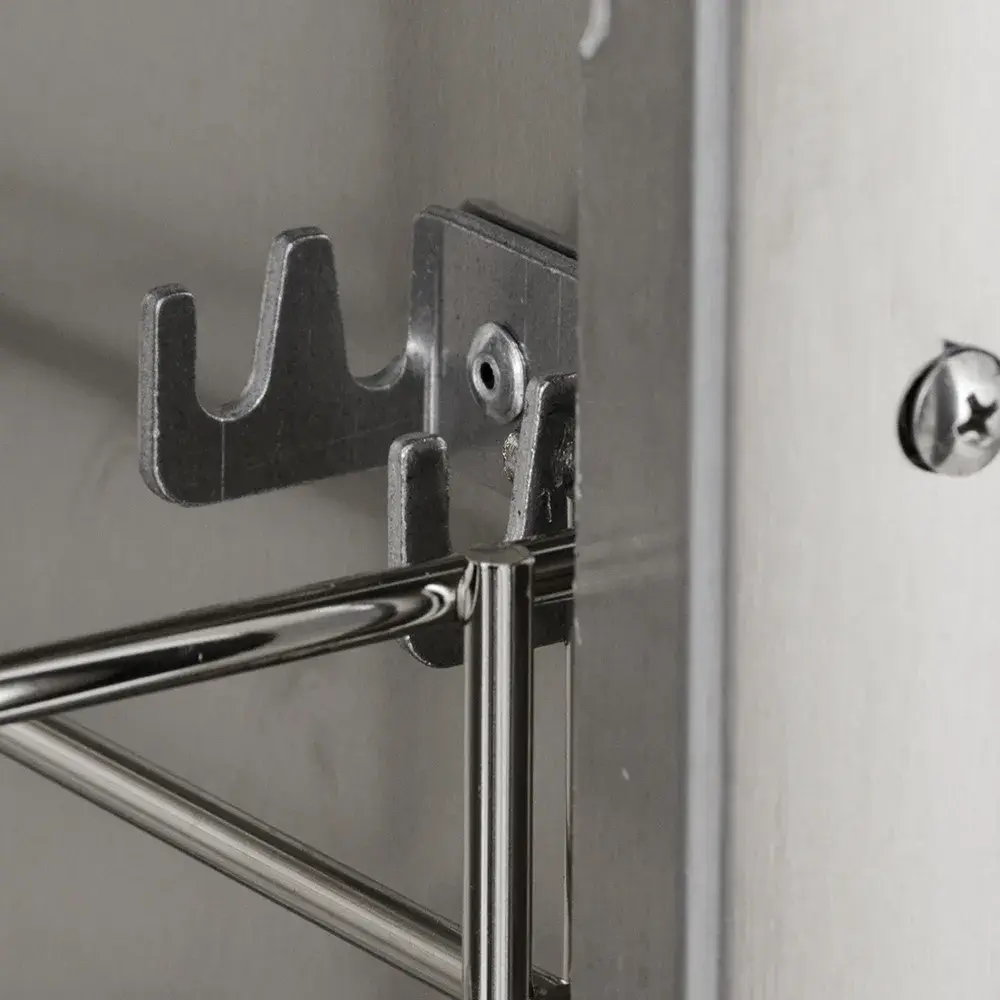

The cabinet preheats to 160°F in 20 minutes and reaches a maximum temperature of 190°F. It accommodates 18 sheet pans (18×26 in) or 36 steam table pans (12×20 in) on universal wire slides spaced 3 inches apart. A tempered glass, single-panel door with a high-temperature Santoprene gasket allows easy monitoring and heat retention. Mobility is provided by four 5-inch swivel casters, two of which have brakes, and the cabinet includes an edge-mounted magnetic latch for secure closure.
Key Specifications
| Feature | Details |
| Manufacturer | Carter-Hoffmann |
| Series | hotLOGIX |
| Application | Heat & Humidity |
| Construction | Aluminum, double-wall, insulated |
| Voltage | 120 V |
| Power | 2.1 kW |
| Phase | 1 |
| Frequency | 60 Hz |
| Dimensions (W×D×H) | 26.5 × 31.5 × 70.63 in |
| Pan Capacity | 18 sheet pans (18×26 in) / 36 steam table pans (12×20 in) |
| Slide Type & Spacing | Universal, 3 in fixed spacing |
| Doors | 1 Glass, single-panel, field-reversible |
| Controls | Dial with digital thermometer |
| Mobility | 4 swivel 5-in casters (2 with brakes) |
| Special Features | Adjustable heat & humidity, edge-mounted magnetic latch |
| Warranty | 3-year Parts & Labor |
