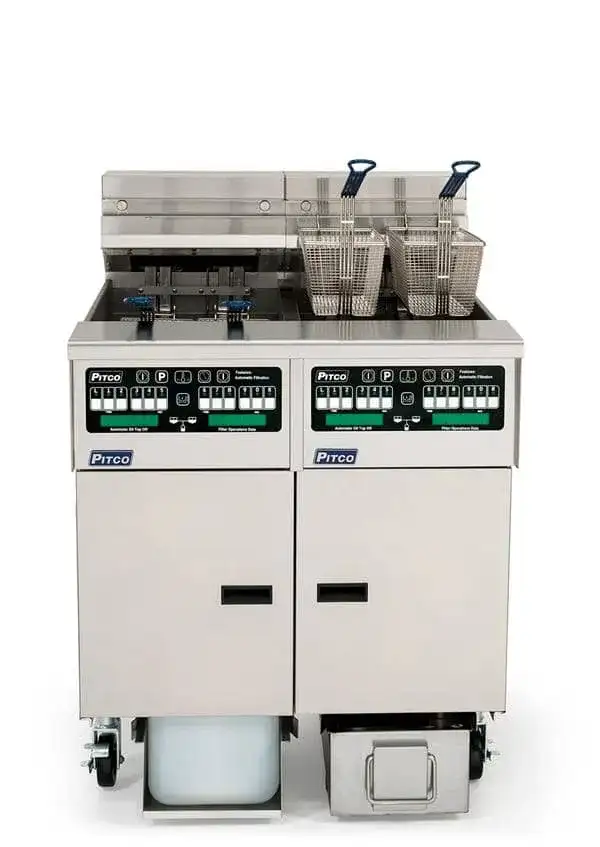

Pitco ELEC FLOOR FRYER SPLIT TANK 2 FILTER DRAWER SE14TC2FD
Pitco SE-14T-C2-FD
is a high-power, electric commercial deep fryer system featuring two split 20-25 lb oil capacity tanks, solid-state controls, and an integrated under-fryer filter drawer system, making it suitable for high-volume frying operations. Key Features and Specifications
- Design: Floor model, freestanding design with stainless steel tank, front, and sides for durability and easy maintenance.
- Capacity: The fryer features two split frypots, each with an oil capacity of 20 to 25 lbs (approx. 13 liters per side), allowing for simultaneous frying of different items.
- Filtration System: Includes an integrated Solstice Filter Drawer System located beneath the fryer, which employs a two-step filtration process to extend oil life and facilitate cleaning.
- Controls: Equipped with solid-state controls with a built-in melt cycle and boil-out modes for precise temperature management and easy cleaning. Optional digital or Intellifry computer controls are available.
- Heating System: Utilizes reliable fixed immersion-type heating elements designed to eliminate oil migration through moving components, enhancing safety and maintenance ease.
- Safety Features: Includes a high-temperature safety limit switch, a drain valve interlock system, and mercury-free heating contactors.
- Power: Operates on an electric power source (e.g., 380/220v/50/60/3-ph, 17 kW total power consumption).
- Accessories: Comes standard with 9-inch adjustable legs, a removable basket hanger that requires no tools, two twin-size wire mesh baskets, a filter crumb scoop, and a drain clean-out rod.
Specifications
The fryer system has the following key specifications:
- Oil Capacity: The system includes two full tanks, each with a capacity of 50 lbs (approx. 22.7 kg) of oil, totaling 100 lbs for the system.
- Frying Area (per tank): According to Pitco data sheets, the frying area for an SE14T (split tank) model is 14" W x 14" D (approx. 35.6 cm x 35.6 cm). Note: Other sources list the individual split tank cooking area as 7" x 14". The user specified a full tank (C2) model.
- Overall Dimensions:
- Width: 46 7/8 inches (approx. 119.1 cm).
- Depth: 34 3/8 inches (approx. 87.3 cm).
- Height: 45 3/8 inches (approx. 115.3 cm).
- Basket Size: The system typically ships with two oblong twin-size baskets, each measuring 13 1/2" x 6 1/2" x 5 3/4" deep.
- Filtration: It features an integrated under-fryer Solstice™ filter drawer system for oil filtration.
- Weight: The approximate shipping weight is around 550 lbs (approx. 249.5 kg).
