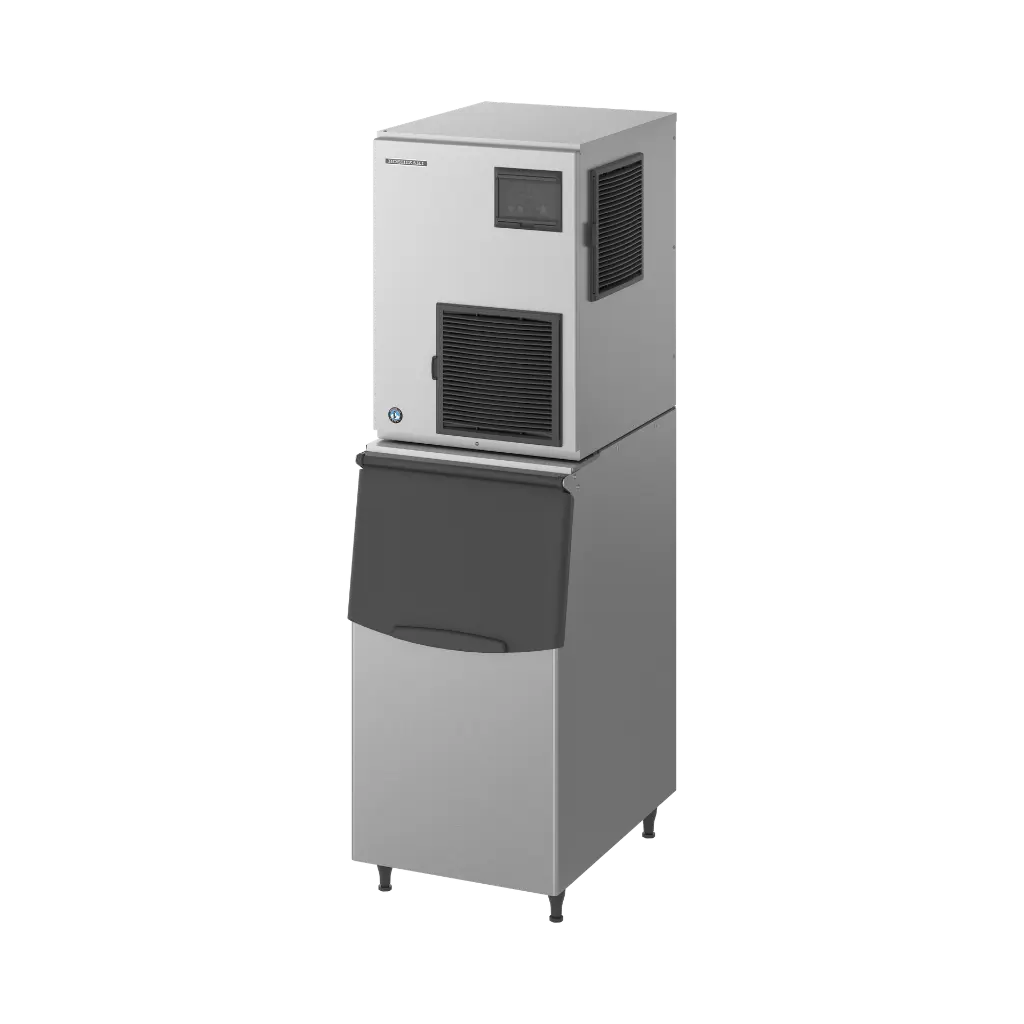

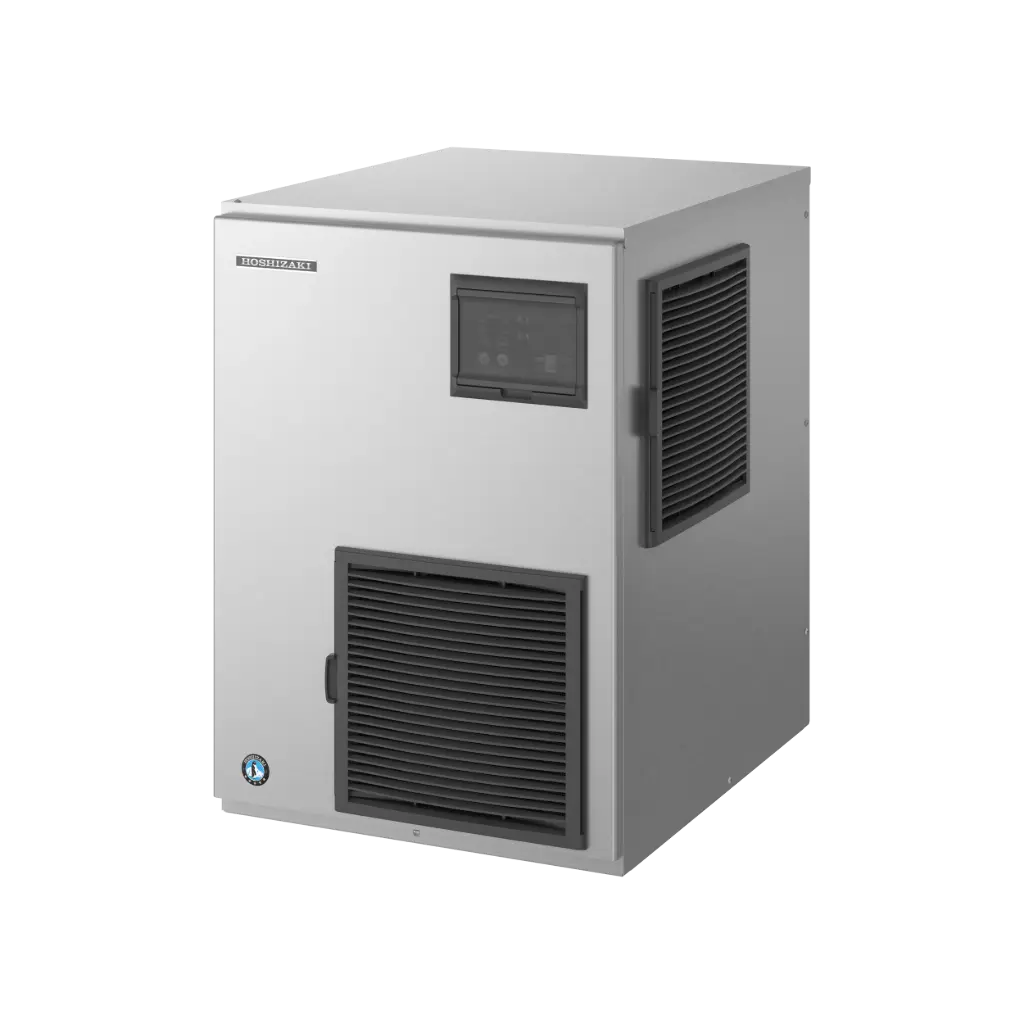

Hoshizaki FM-480AKE-N Modular Ice Maker Machine F082-C831
This Hoshizaki FM-480AKE-N(SA) is a modular nugget ice maker producing up to kg of high-quality nugget ice per 24 hours.
Hoshizaki FM ice makers generate quality granular ice, such as nugget ice. In cocktails, the dry and hard ice nuggets are the ideal cooling agent, as they deliver just the right amount of dilution, especially for strong spirited drinks, for example, Mojitos and Tiki Cocktails. The ice maker's extruding head performs a high compression to yield harder and drier ice nuggets.
Key features
The FM-480AKE-N(SA) uses refrigerant [R404A].
Material
The exterior and the auger are made of stainless steel. The closed water circuit provides maximum protection against any type of contamination during ice production. All Hoshizaki machines are easy to use, clean, and maintain.
Unique Technology
The inner workings of our Nugget Ice Makers are designed to prevent unpleasant calcification and bacterial contamination. For example, the use of carbon graphite bushings instead of conventional ball bearings allows the machine to work entirely without grease.
Smart Design
Like all Hoshizaki Ice makers, the FM-480AKE-N(SA) is designed to last and comes with smart design extras, such as the intuitive control display for preventive maintenance.
Perfect Fit
Need to amp up your production capacity? The variable setups with modular bins and bases allow the user to mix and match depending on individual requirements and conditions. The dimensions of the FM-480AKE-N(SA) are 560 x 700 x 780 mm.
Plug & Play
The smart plug-and-play design guarantees an easy and quick set-up.
Specifications
| Specification | Value |
| Item number | F082-C831 |
| Model name | FM-480AKE-N(SA) |
| Ice maker type | Nugget Ice Maker |
| Brand | Hoshizaki |
| Product configuration | Modular |
| Title | Nugget Ice Maker, Modular |
| Please observe | This type of icemaker is on special order only. Please take longer lead times into consideration. |
| Width | 560 mm |
| Width (packed) | 665 mm |
| Depth | 700 mm |
| Depth (packed) | 820 mm |
| Height | 780 mm |
| Height (packed) | 950 mm |
| Volume (packed) | 0.518 m³ |
| Electric Consumption | 1.59 kW |
| Energy consumption | 1.59 kWh |
| Exterior | Stainless Steel |
| Gross weight | 102 kg |
| Net weight | 92 kg |
| Power supply | 1/220 - 240V/60Hz |
| Cooling system | Air Cooled |
| Ice type | Nugget |
| Ice production | 370 |
| Water consumption - Air cooled ice makers | 0.4 |
| CO2 equivalent | 2352 kg |
| Refrigerant type | R404A |
| SKU | F082-C831 |
| Brand | Hoshizaki |
